| Supported Device | iPhone 17e, 16e |

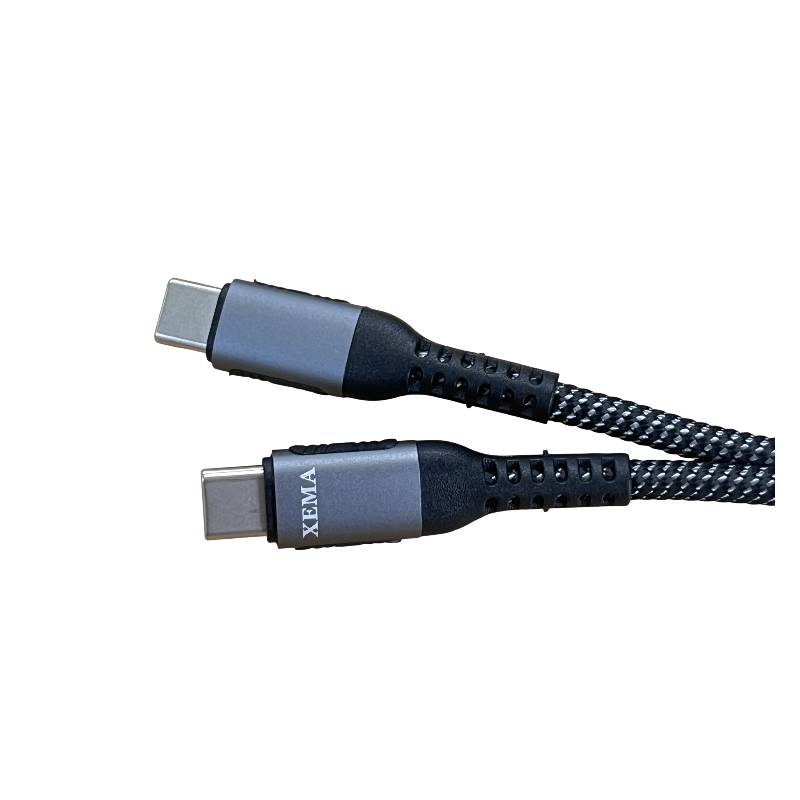

| Interface | USB Type-C |
| RF Engine | XEMA M83 module with Impinj E310 die inside |
| Air Protocols | ISO 18000-63 (EPC Class1 Gen2 v2) |
| Frequency Range | 902-928 MHz (FCC Part 15.247) 865-868 MHz (ETSI EN 302 208) Japan, Taiwan, and other worldwide regions |
| RF Power Output | Up to 28 dBm |
| RX Sensitivity | < -70 dBm |
| Fastest Read Rate | 300 tags/s |
| Nominal Read Range | ~3 m (~9.84 ft.) |
| Sensor Resolution | 1280 x 800 pixels global shutter |

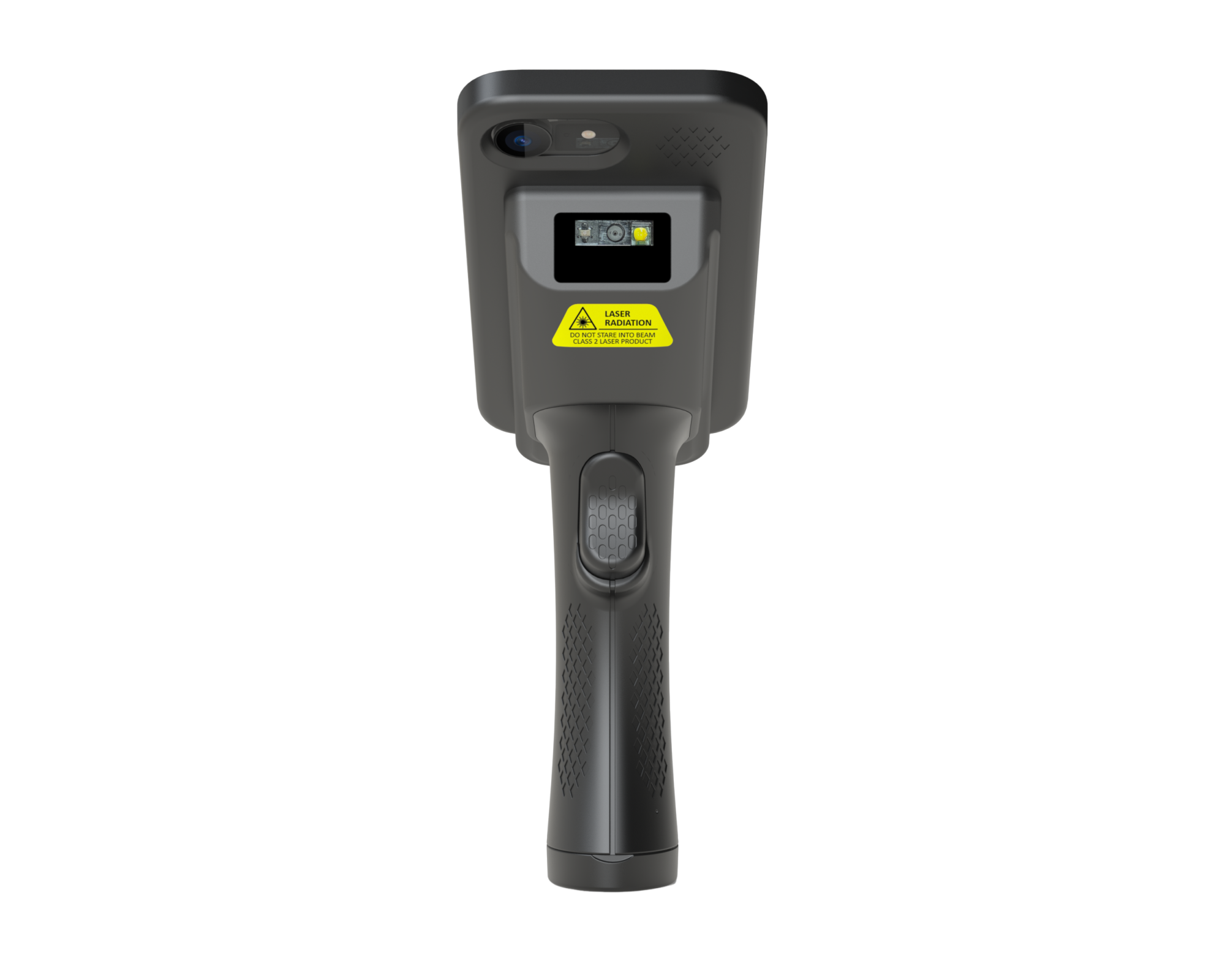

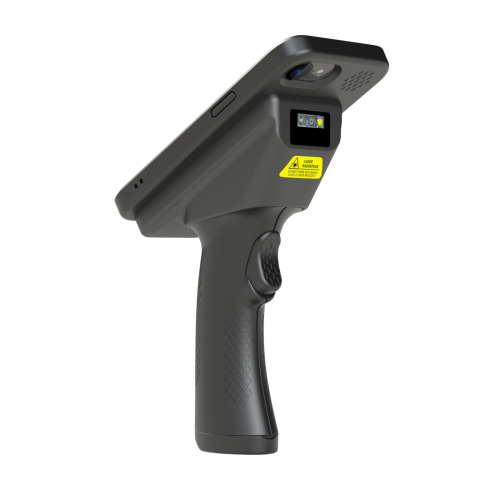

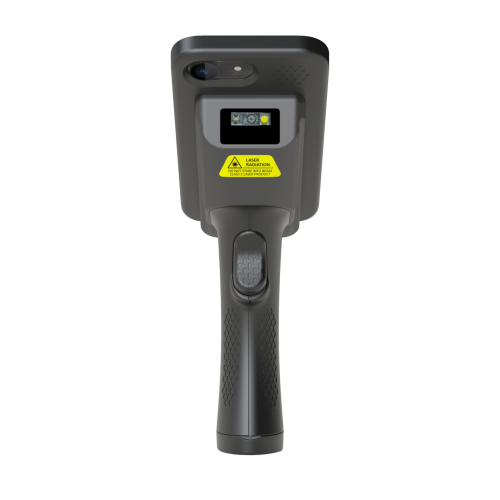

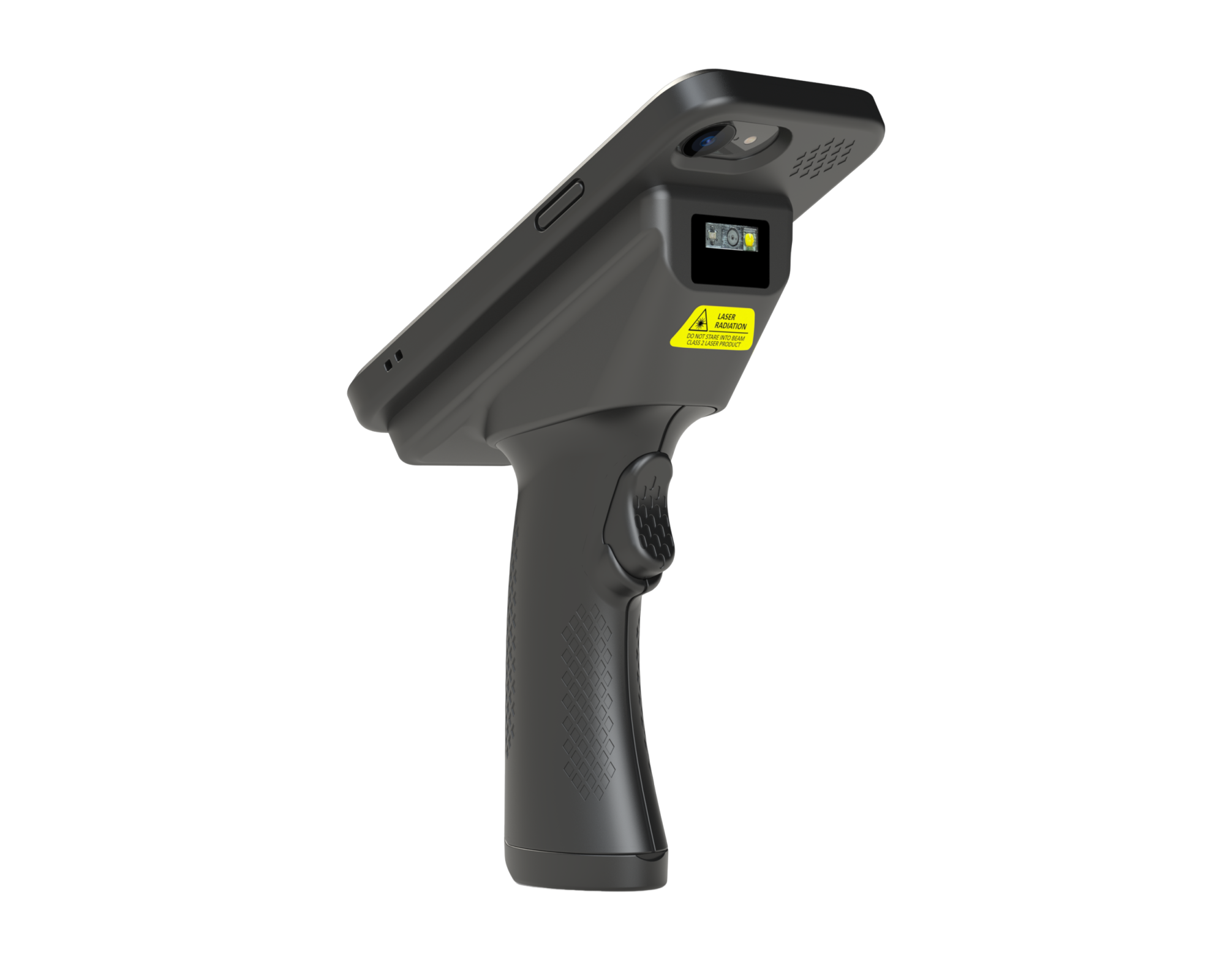

| Aimer | Cross target red laser |
| Illumination | White LED |
| Symbology 13 mil UPC 5 mil Code 39 10 mil Code 39 20 mil Code 39 15 mil Code 128 6.7 mil PDF 417 10 mil Data Matrix 15 mil QR | Reading Distance mm [ in ] 573 [22.5] 301 [11.9] 517 [20.3] 800 [31.5] 650 [25.6] 244 [9.6] 297 [11.7] 414 [16.3] |
| Dimensions | 143 L x 78 W x 211 H (mm) 5.6 L x 3.1 W x 8.3 H (in) |
| Weight | 298 gr / 10.5 oz with battery |
| Case Material | PC+TPR |

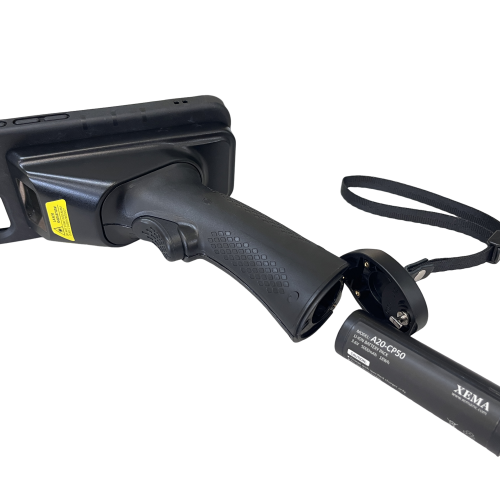

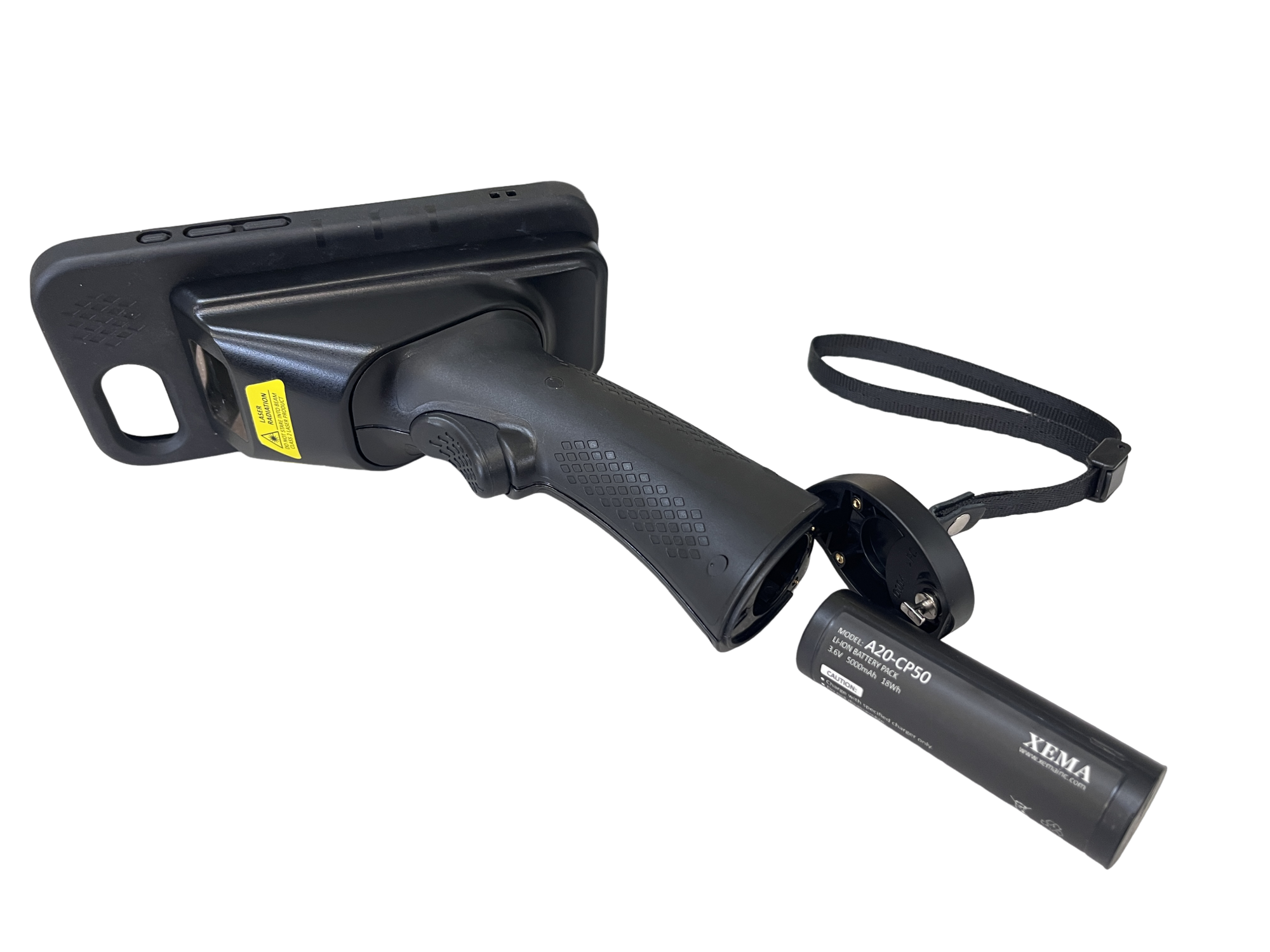

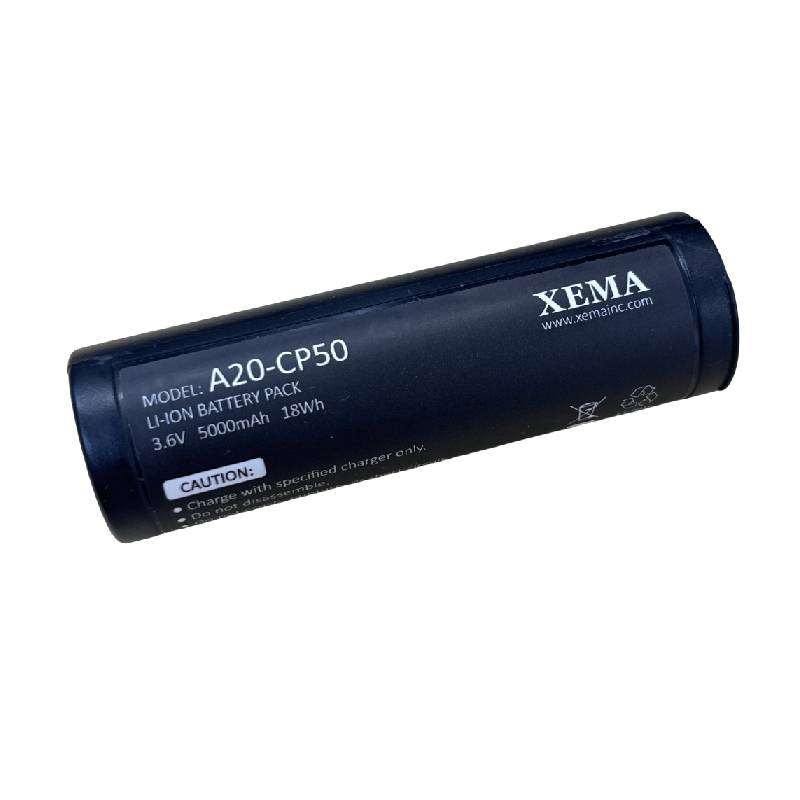

| Battery | Li-ion, 5,000 mAh, Swappable |

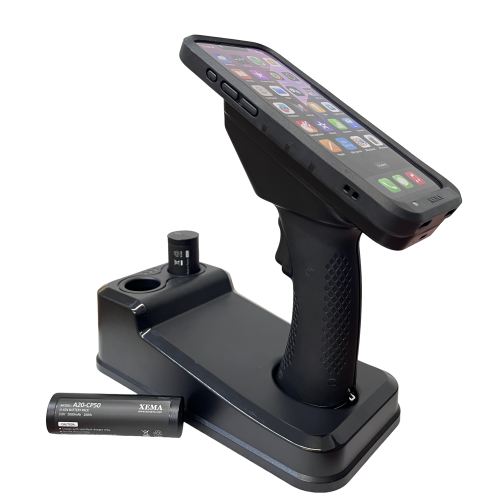

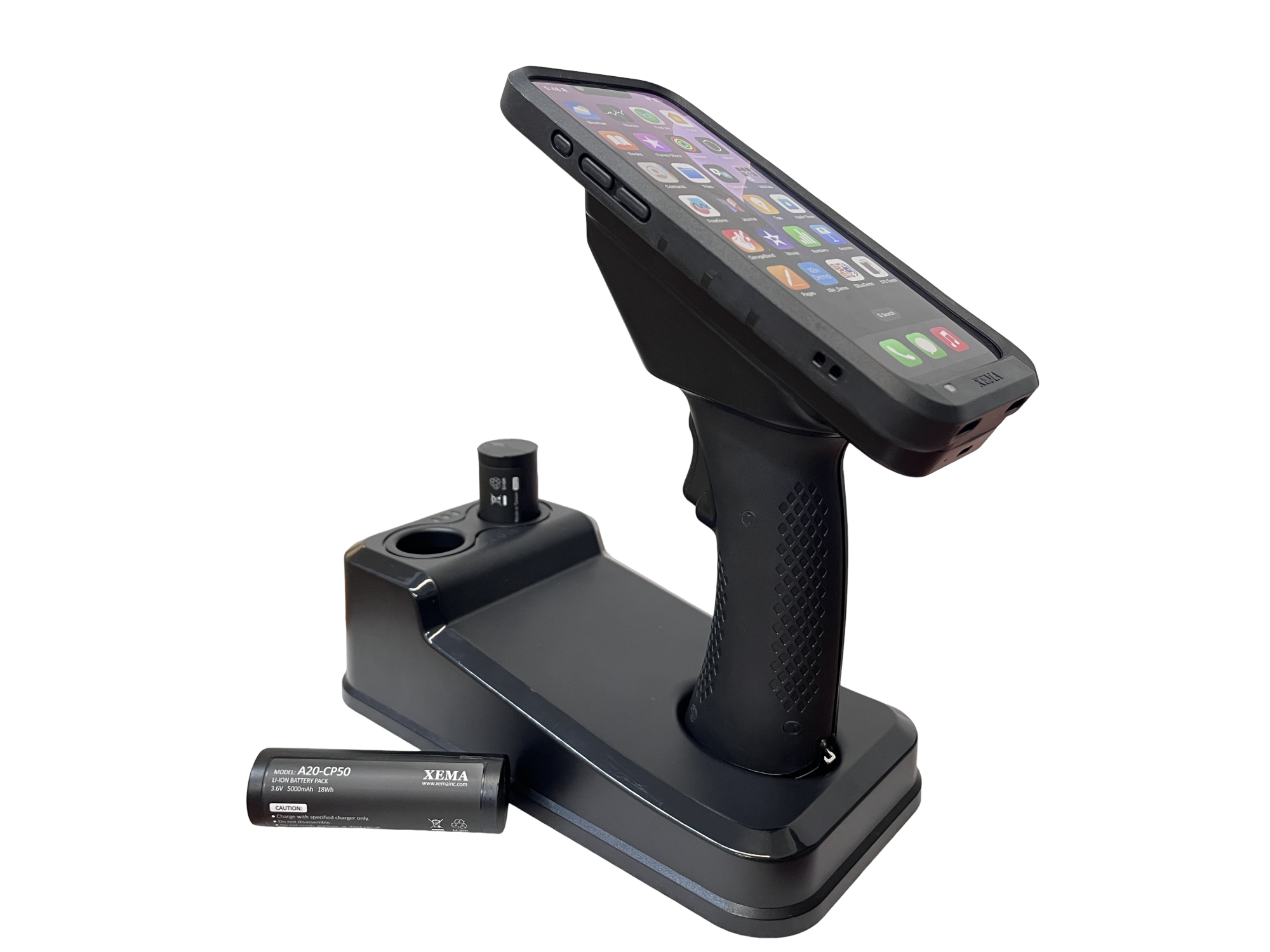

| Charging | Type-C PD 3.0 and Pogo Pin (Docking Charger) |
| Indicators | RFID/Barcode read buzzer Battery charging LED |
| Buttons | Single trigger button |
| Operating Temp. | -10°C to 50°C/14°F to 122°F |
| Storage Temp. | -40°C to 70°C/-40°F to 158°F |
| Humidity | 5%-85% non-condensing |
| IP Rating | IP65 |
| Made in Taiwan or USA |
