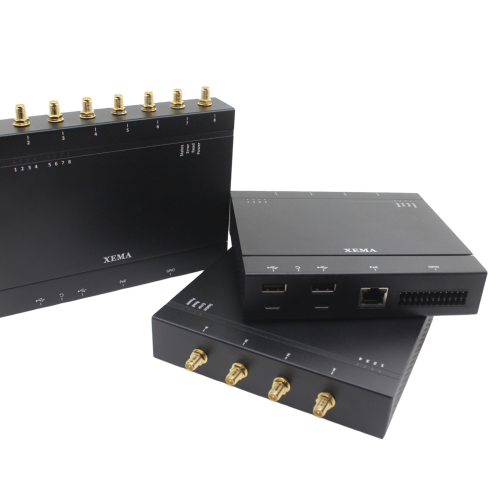

| RF Engine | XEMA M87P4/8 module with Impinj E710 |
| Air Protocols | ISO 18000-63 (EPC Class1 Gen2 v2) |
| Frequency Range & Certification | 902~928 MHz, USA/FCC 14 CFR 15.247/107/109 865~868 MHz, EU/ETSI EN 302 208 916~921 MHz, Japan/Giteki 2-1-6-2 922~928 MHz, Taiwan/NCC LP0002 and other worldwide regions |
| RF Power Output | Up to 33 dBm |
| Port Switching Time | < 10 ms |
| RX Sensitivity | < -83 dBm |
| Fastest Read Rate | > 1,000 tags/s |
| DRM Mode | Supported |
| Processor | Microchip SAM9X60 (600 MHz) |
| Memory | Flash 4 GB, DRAM 1 GB |
| Operating System | Embedded Linux |
| Firmware Upgrade | Web based remote upgrade |
| Network Services | DHCP, TCP, HTTPS, SSH, HTTP, NTP |
| API Support | Host Application – .NET Embedded Application – C & Java |

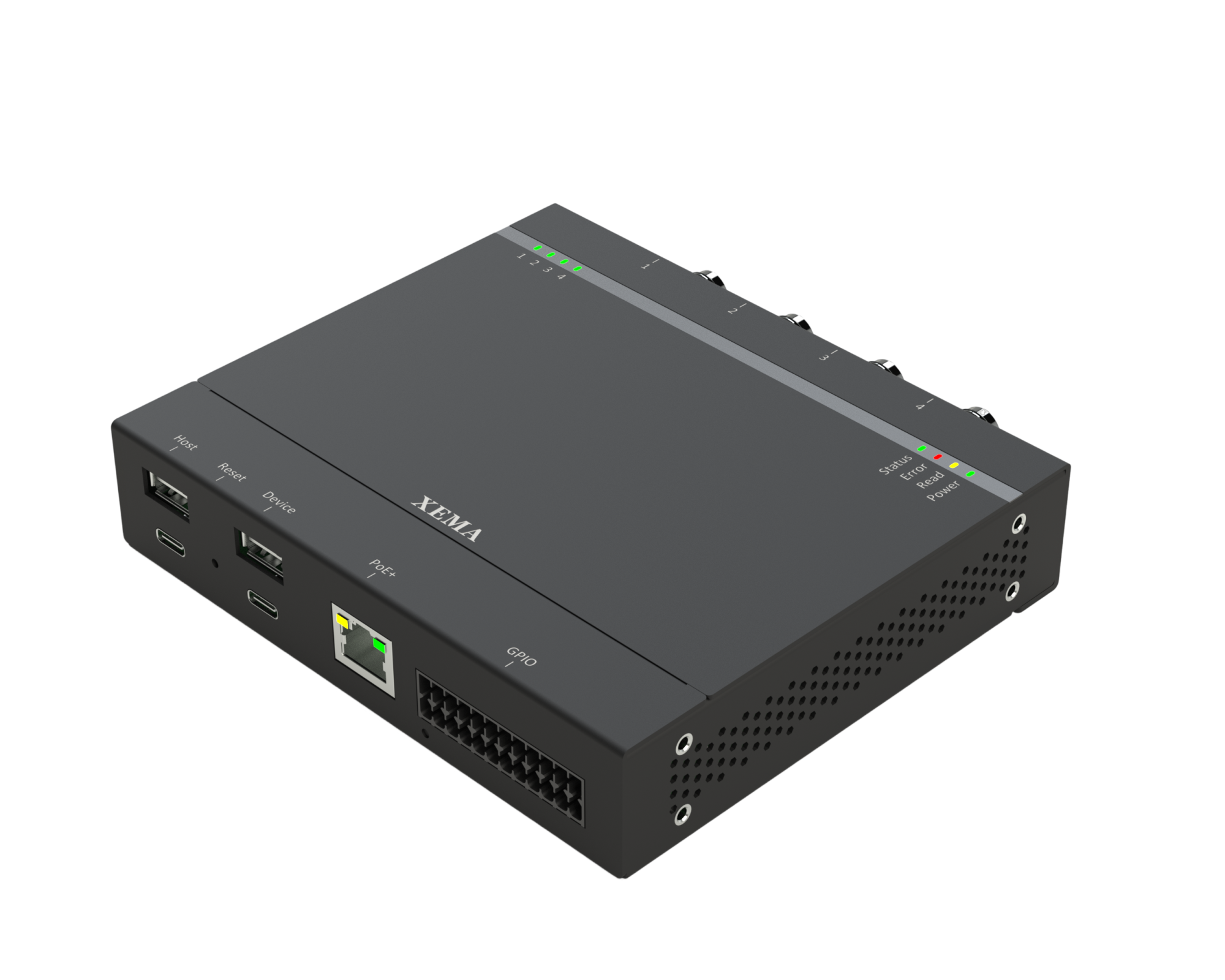

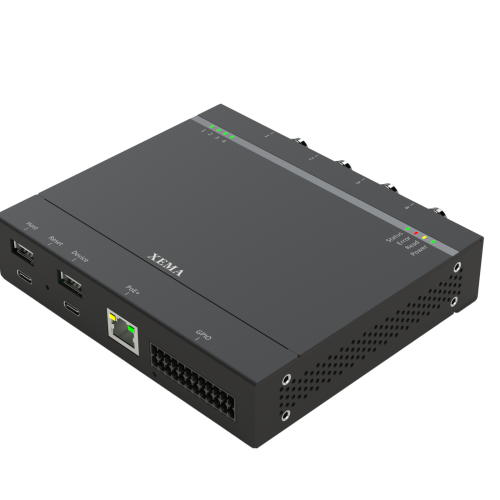

| Communications | 10/100 Base T Ethernet (RJ45) 1x USB Host/Client (Type C) 1x USB Host/VCP (Type A) 2x USB Client (Type C & Type A) |

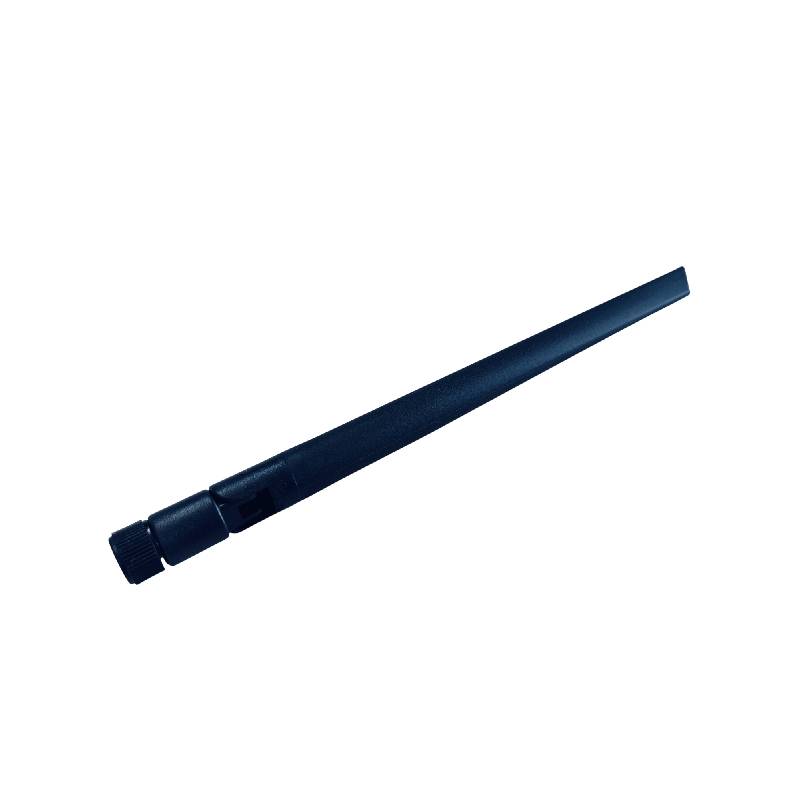

| Wireless (optional) | Wi-Fi 4/Bluetooth 5.0 |

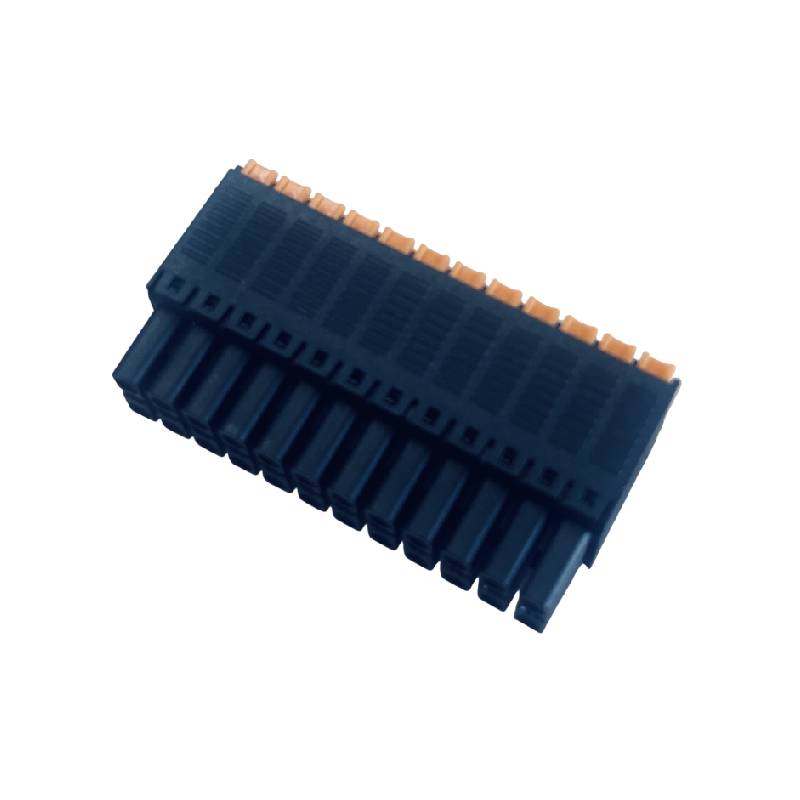

| General Purpose I/O | 24 positions spring clamp terminal blocks: 4x digital input, optically isolated, 4~60VDC 2x relay, 250VAC/220VDC, 62.5VA/60W max 2x programmable output, 12VDC/500mA max 1x continuous output, 5VDC/500mA max 1x reboot/reset input 1x trigger input |
| Power Supply | PoE+ (802.3.at), 30W 12VDC 3A |

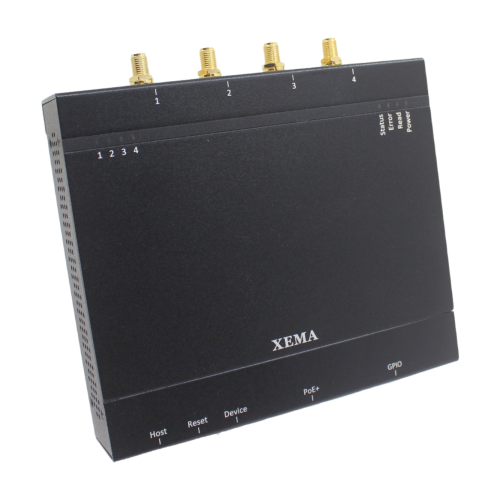

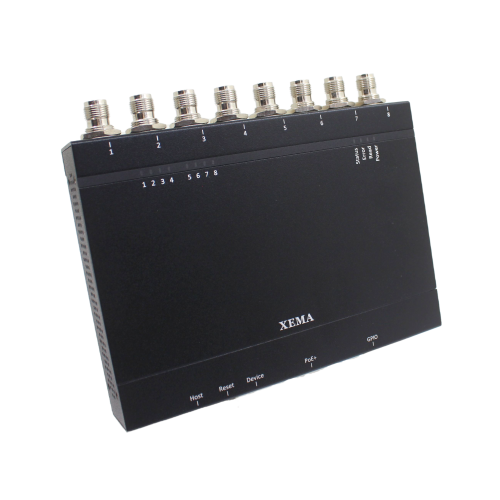

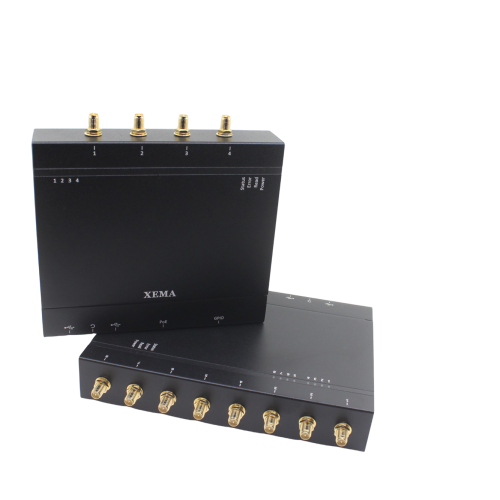

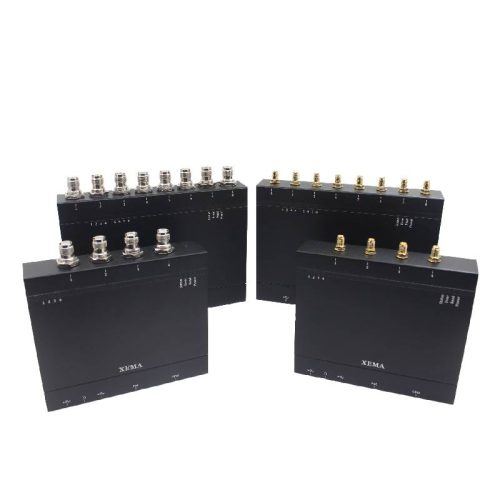

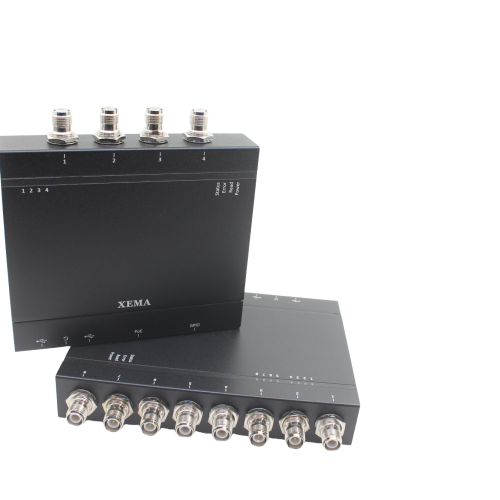

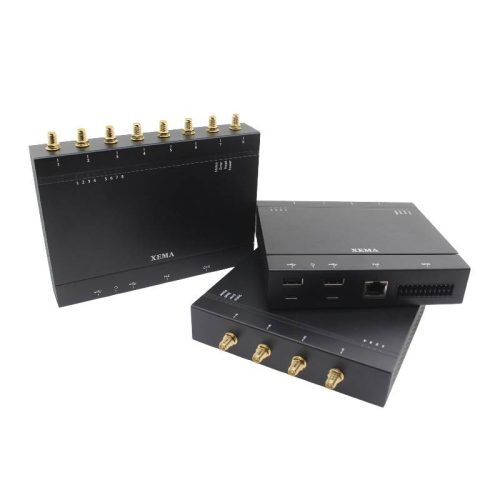

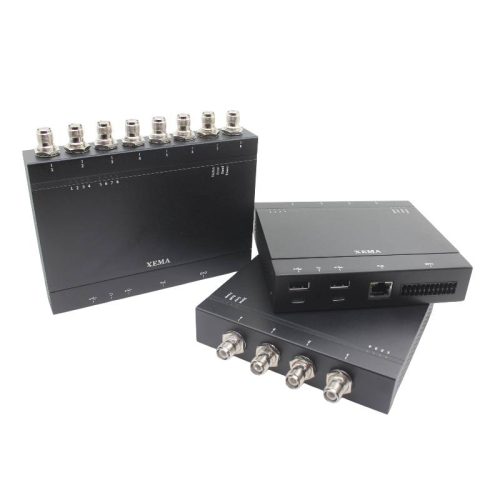

| Antenna Connector | RP-TNC or RP-SMA, monostatic |

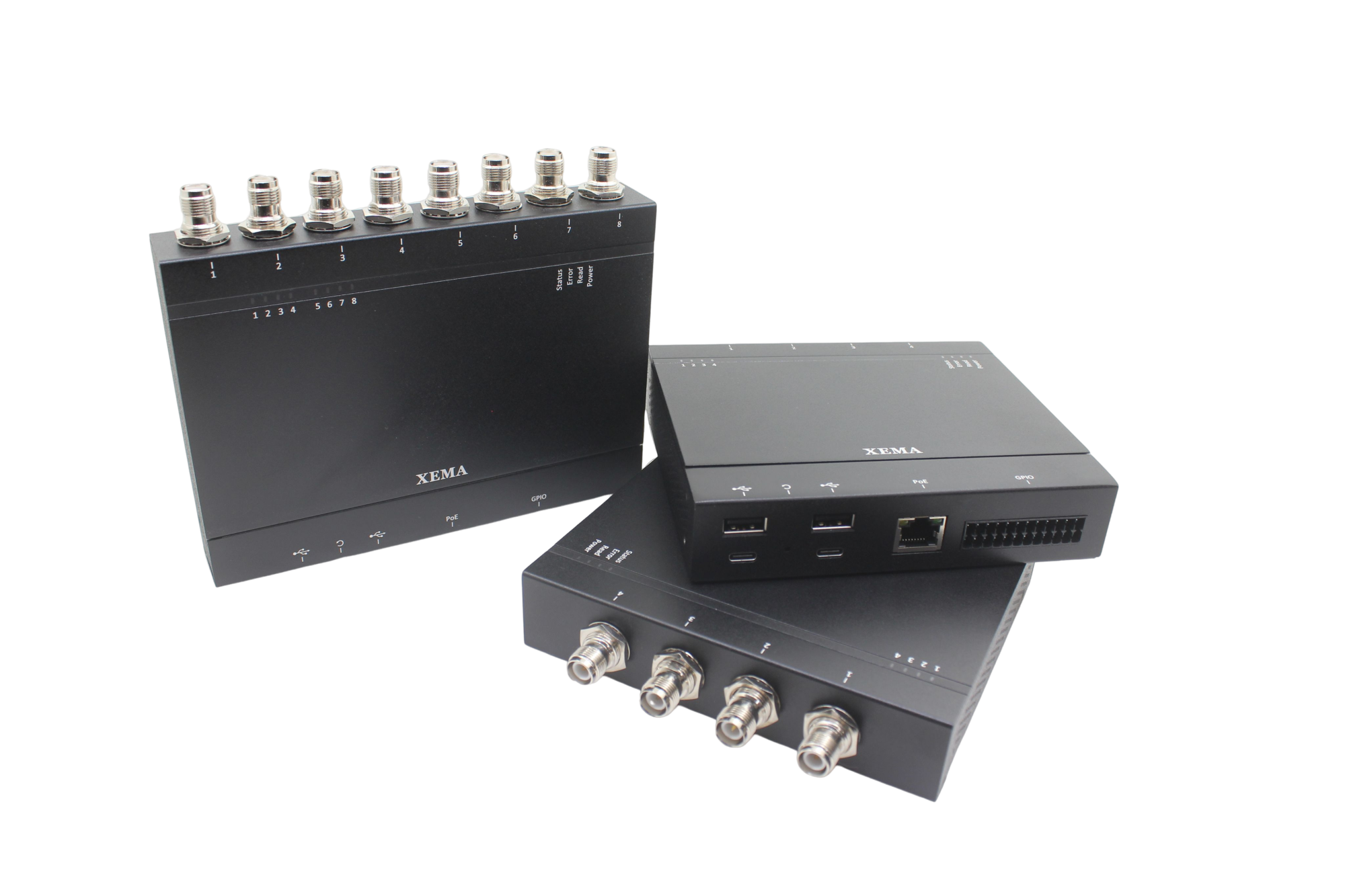

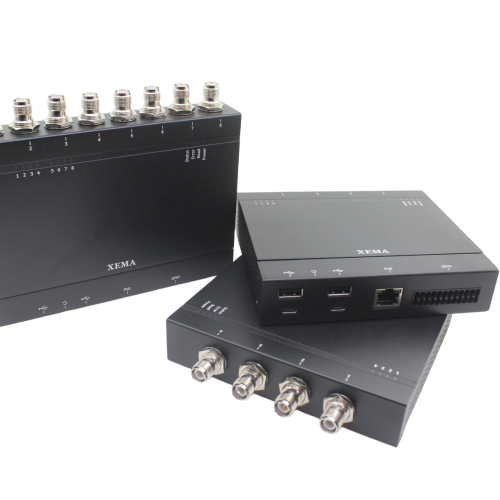

| Dimensions | 4-port: 140 L x 121 W x 30 H (mm) 5.51 L x 4.76 W x 1.18 H (in) 8-port: 170 L x 121 W x 30 H (mm) 6.69 L x 4.76 W x 1.18 H (in) |
| Weight | 4-port: 440 gr / 15.5 oz 8-port: 570 gr / 20.1 oz |
| Housing Material | Aluminum Alloy |

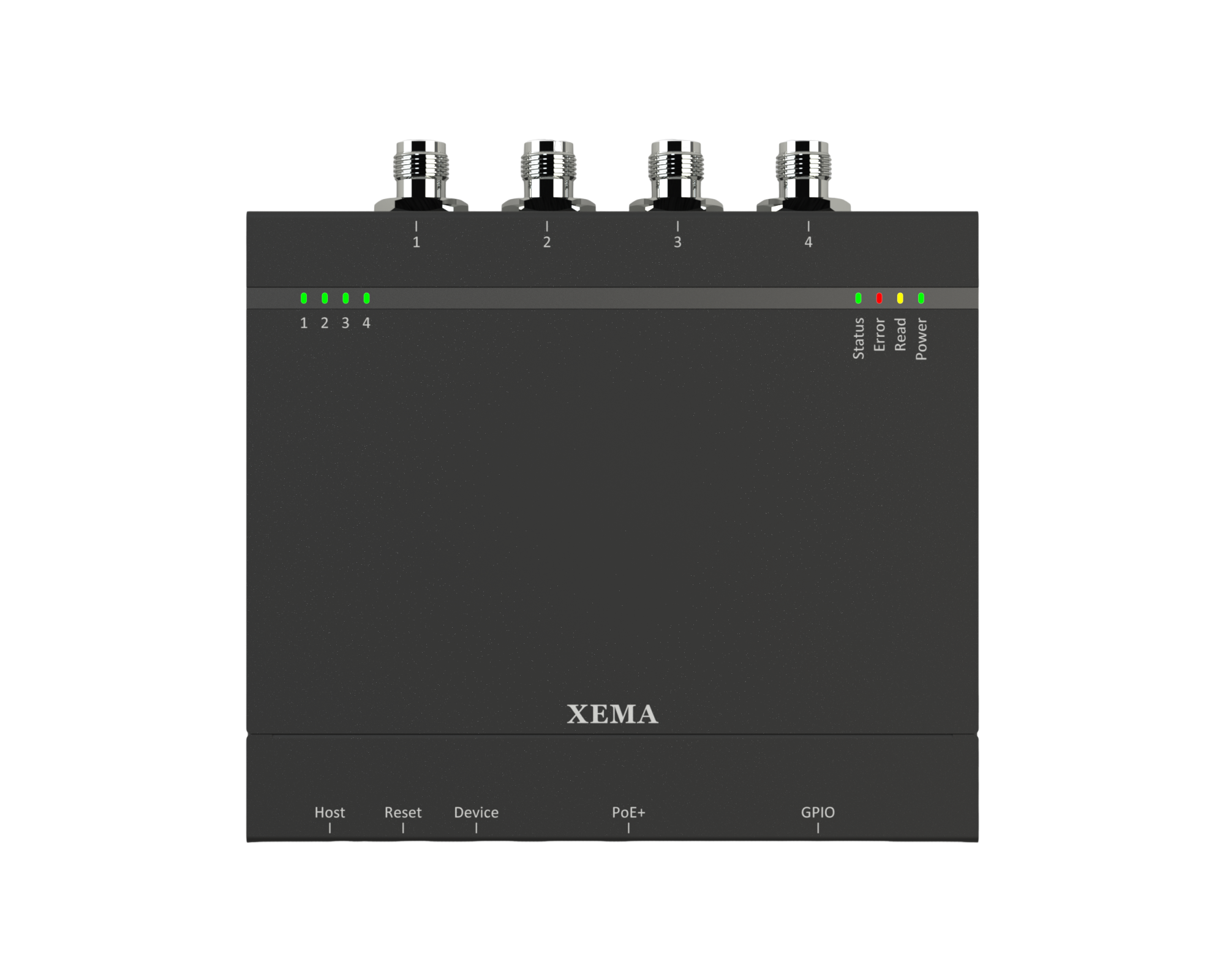

| Visual Indicators | Multicolor LEDs: Power, Read, Error, Status, and antenna port activity |
| Operating Temp. | -20°C to 55°C / -4°F to 131°F |
| Storage Temp. | -40°C to 70°C / -40°F to 158°F |
| Humidity | 5%-95% non-condensing |
| IP Rating | IP40 |
| Made in Taiwan |
