| RF Engine | XEMA RFID module with Impinj E310/E710 inside |
| Air Protocols | ISO 18000-63 (EPC Class1 Gen2 v2) |
| Frequency Range | 902-928 MHz (FCC Part 15.247) 865-868 MHz (ETSI EN 302 208) Japan, Taiwan, and other worldwide regions |
| RF Power Output | 28 or 33 dBm |
| Port Switching Time | < 10 ms |
| RX Sensitivity | < -70 or -83 dBm |
| Fastest Read Rate | Up to 300 tags/s or 1000 tags/s |
| Number of Channels | FCC: 50 hopping channels ETSI: 4 channels |
| DRM Mode | FCC: 50 hopping channels ETSI: 4 channels |
| Dimensions | 100 L x 90 W x 32 H (mm) 3.94 L x 3.54 W x 1.26 H (in) |
| Weight | 240~260 gr (8.47~9.17 oz) |
| Battery | Li-ion 5,000 mAh, removable |
| Housing Material | Aluminum Die Cast and PC/ABS |

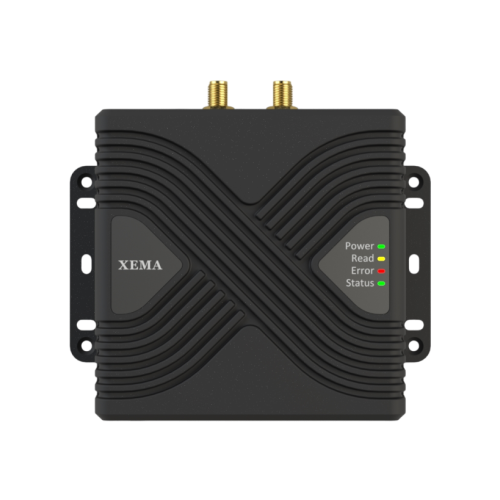

| Visual Indicators | 4-Multicolor LEDs: Power, Read, Error, Status |
| Operating Temp. | -20°C to 55°C/-4°F to 131°F |
| Storage Temp. | -40°C to 70°C/-40°F to 158°F |
| Humidity | 5%-95% non-condensing |
| IP Rating | IP65 |

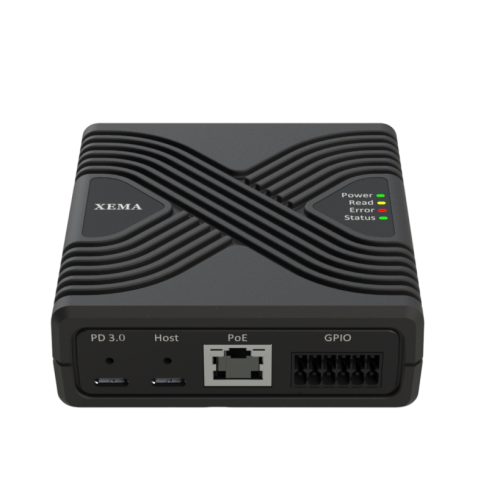

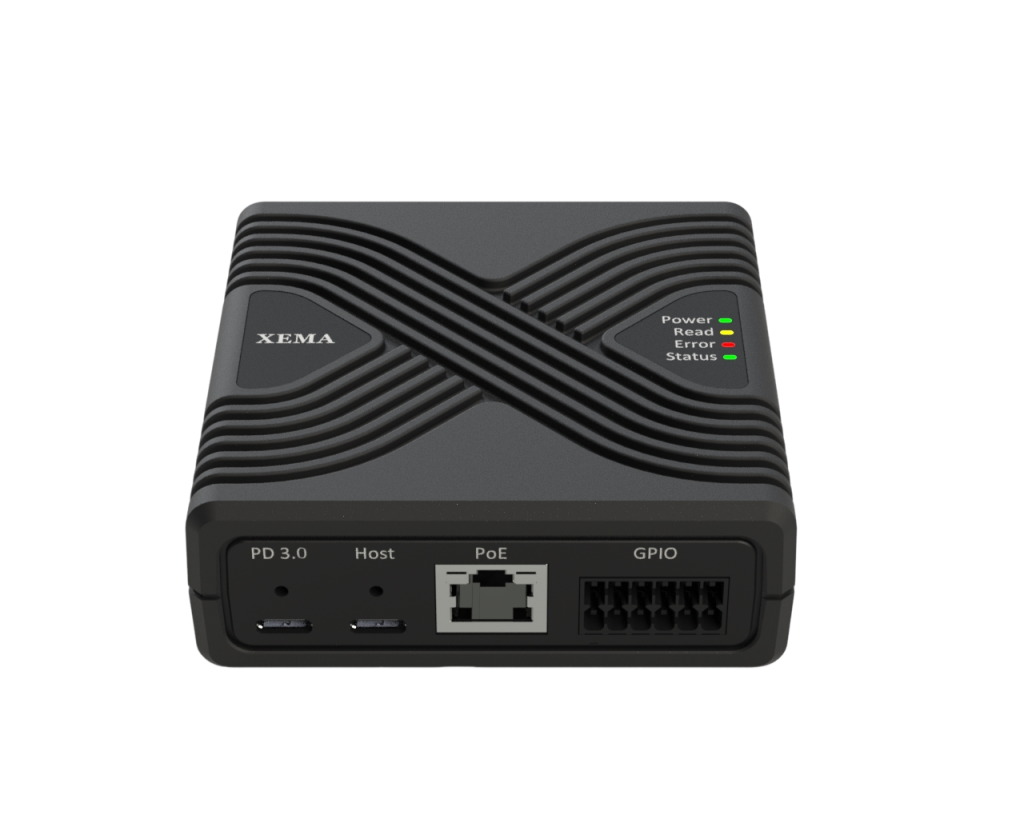

| Communications | 10/100 Base-T Ethernet (RJ45) 1x USB Host (Type-C) |

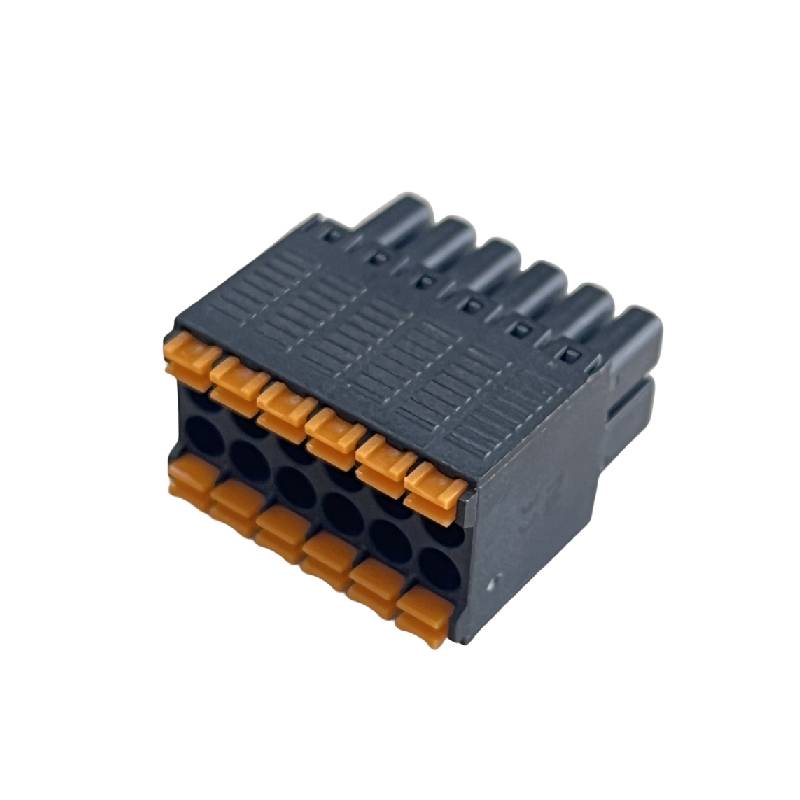

| General Purpose I/O | 12 positions spring clamp terminal block: 2x digital input, optically isolated, 4~60VDC 2x relay, 250VAC/220VDC, 62.5VA/60W max 1x reboot/reset input 1x trigger input |
| Power Supply | PoE (802.3af), 15W Type-C PD 3.0 |
| Antenna Connector | 2/4 ports, PR-SMA, monostatic |
| Made in Taiwan or USA |
