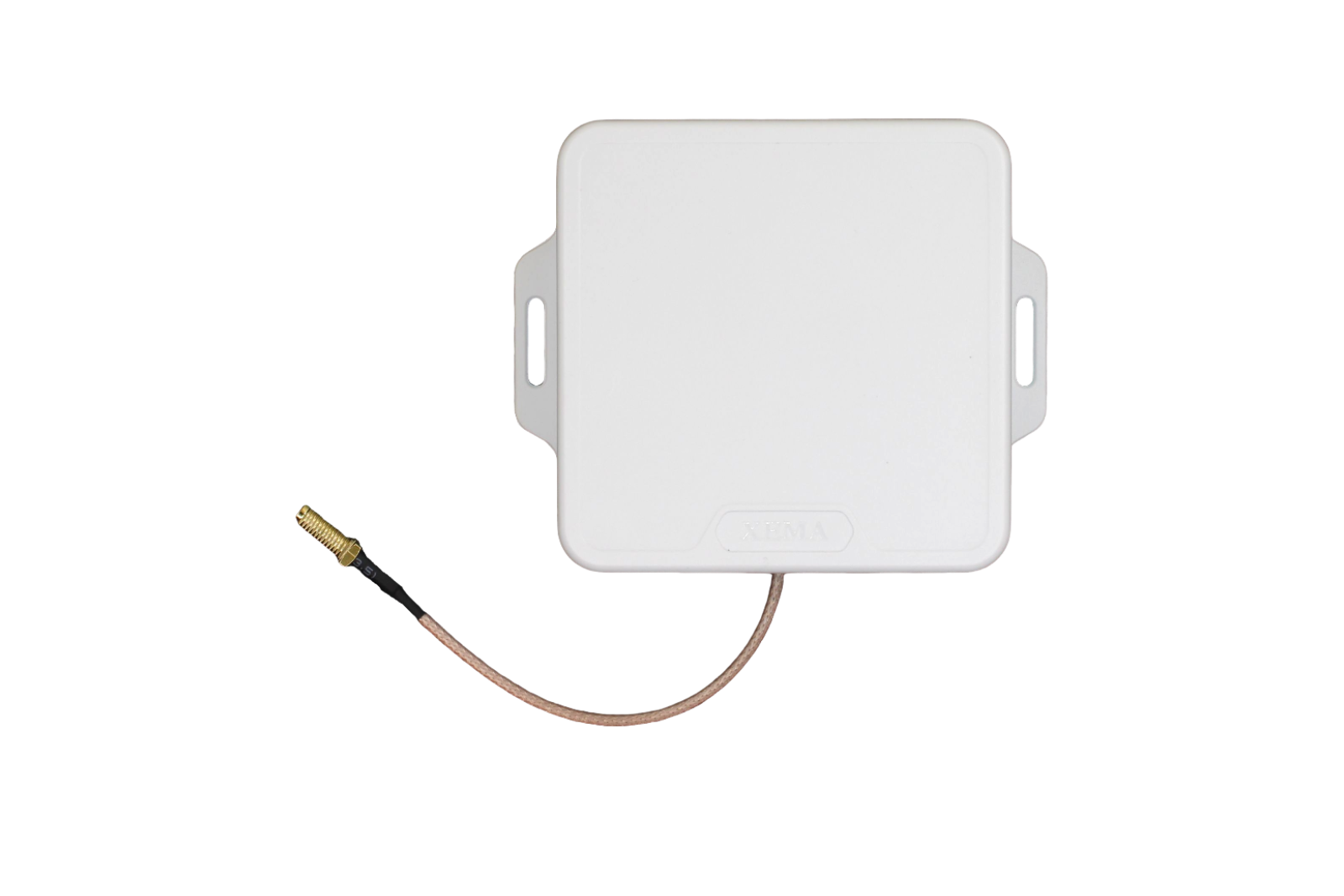

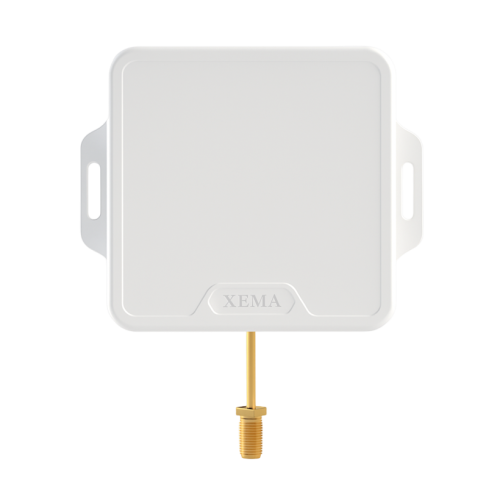

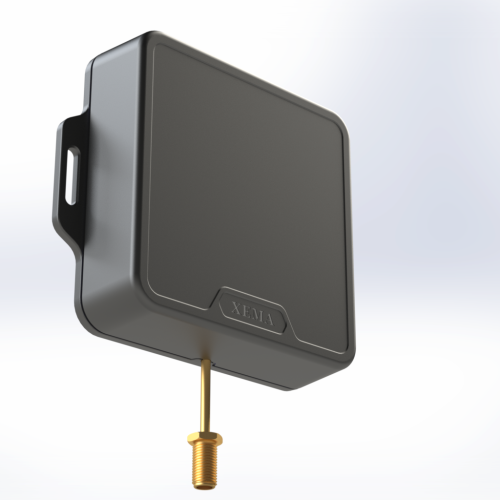

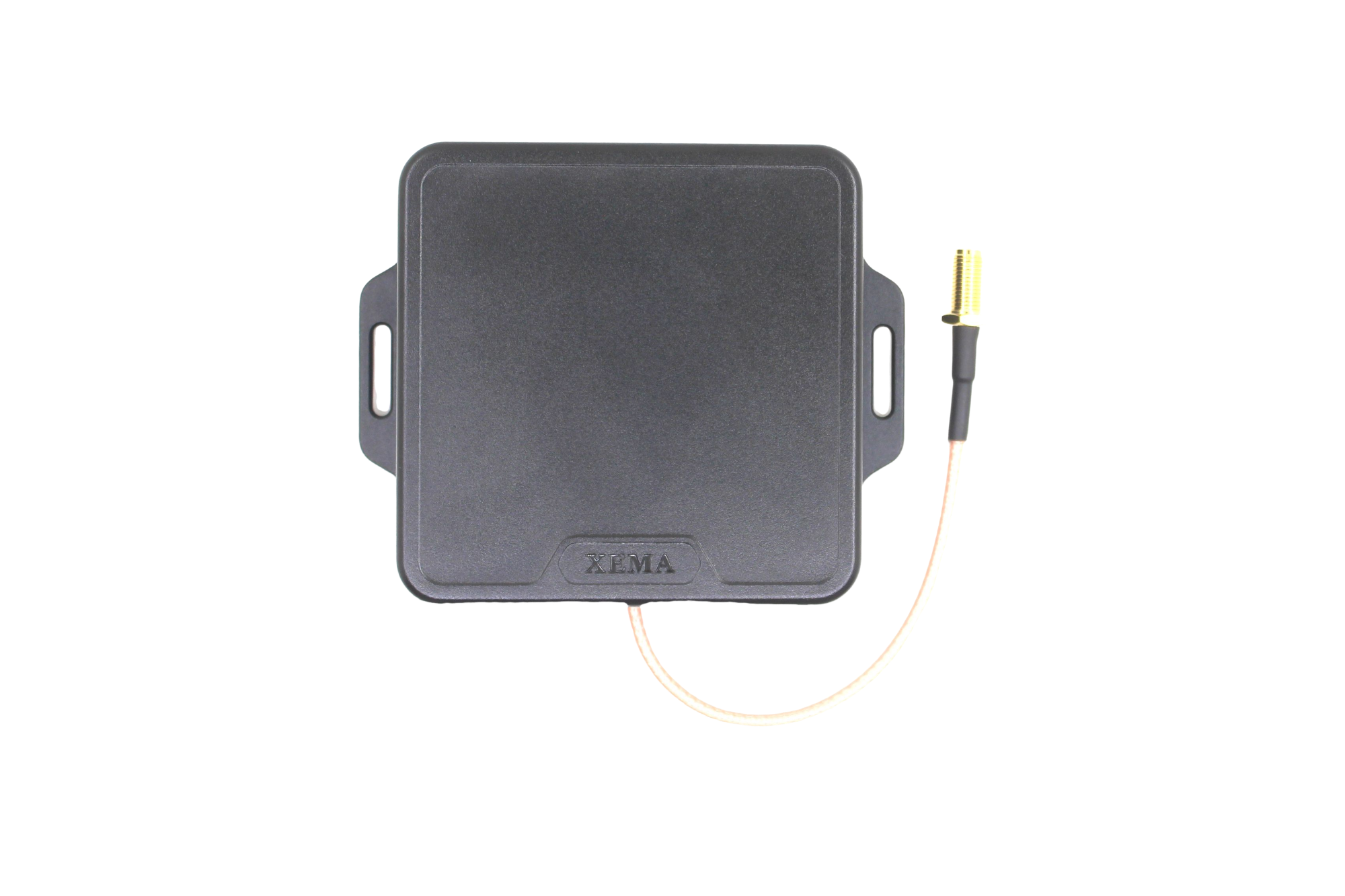

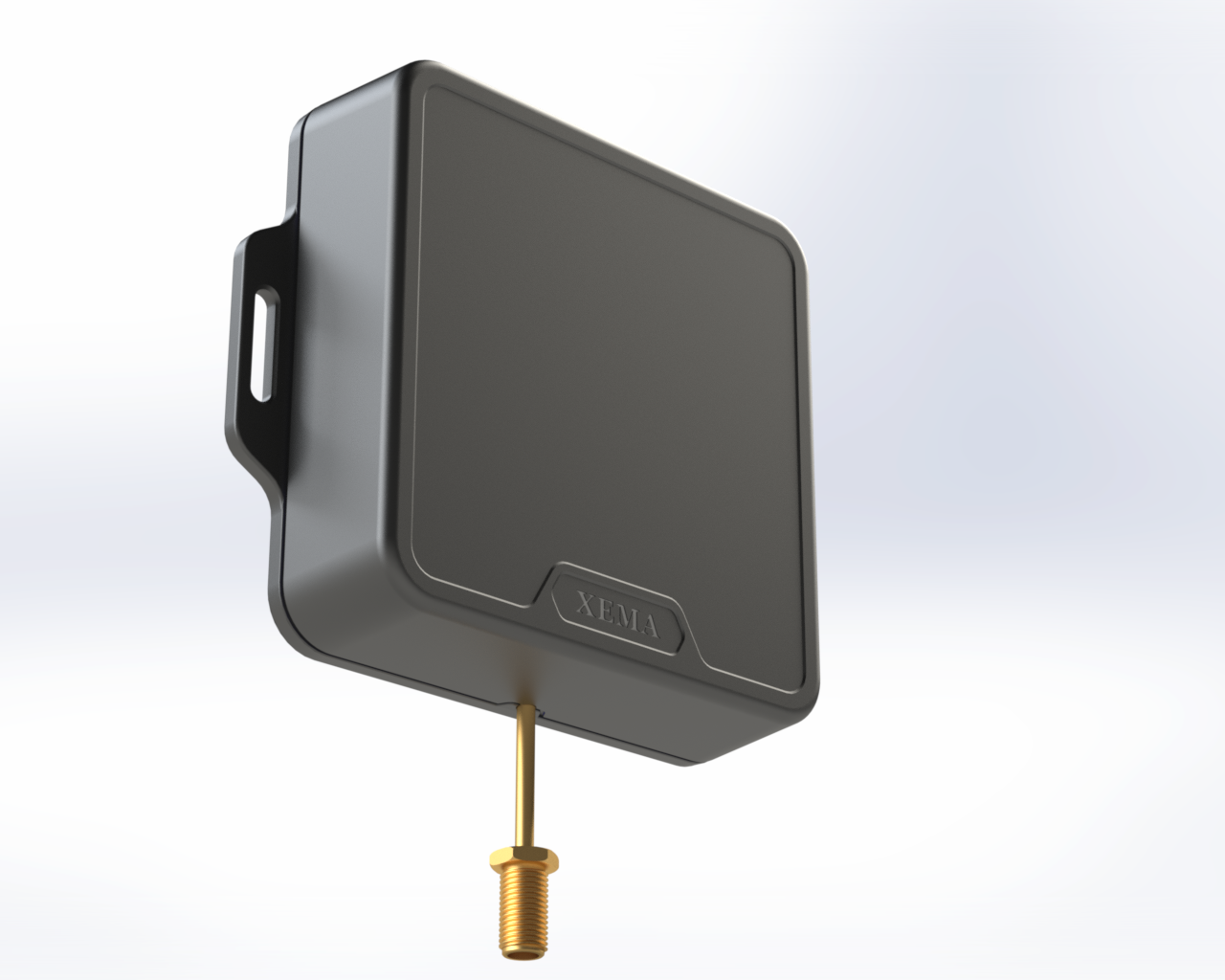

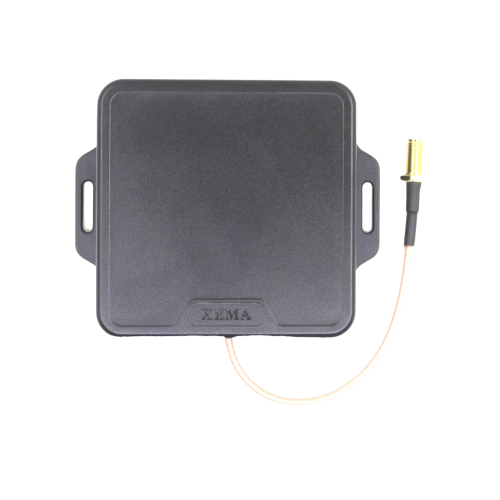

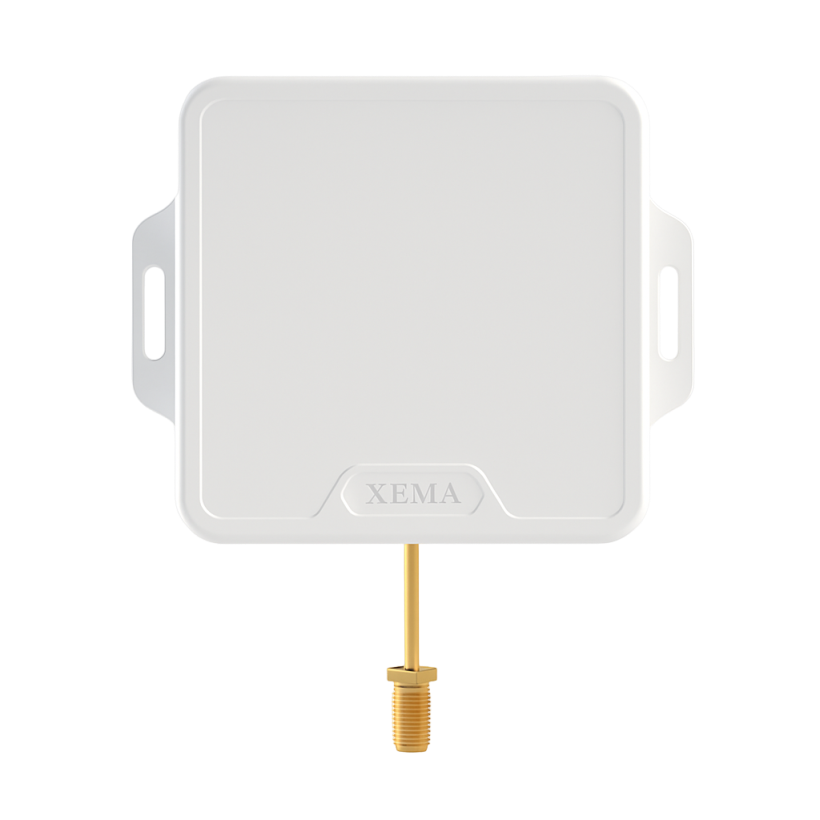

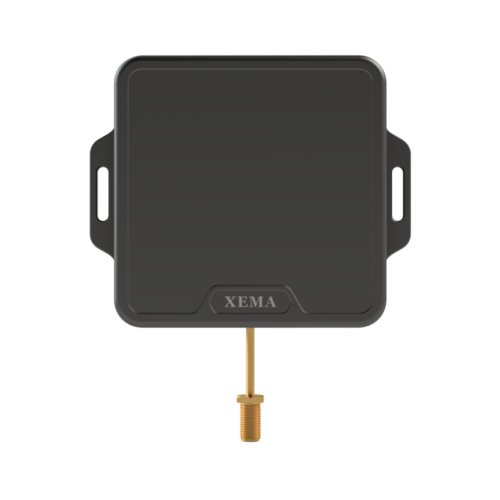

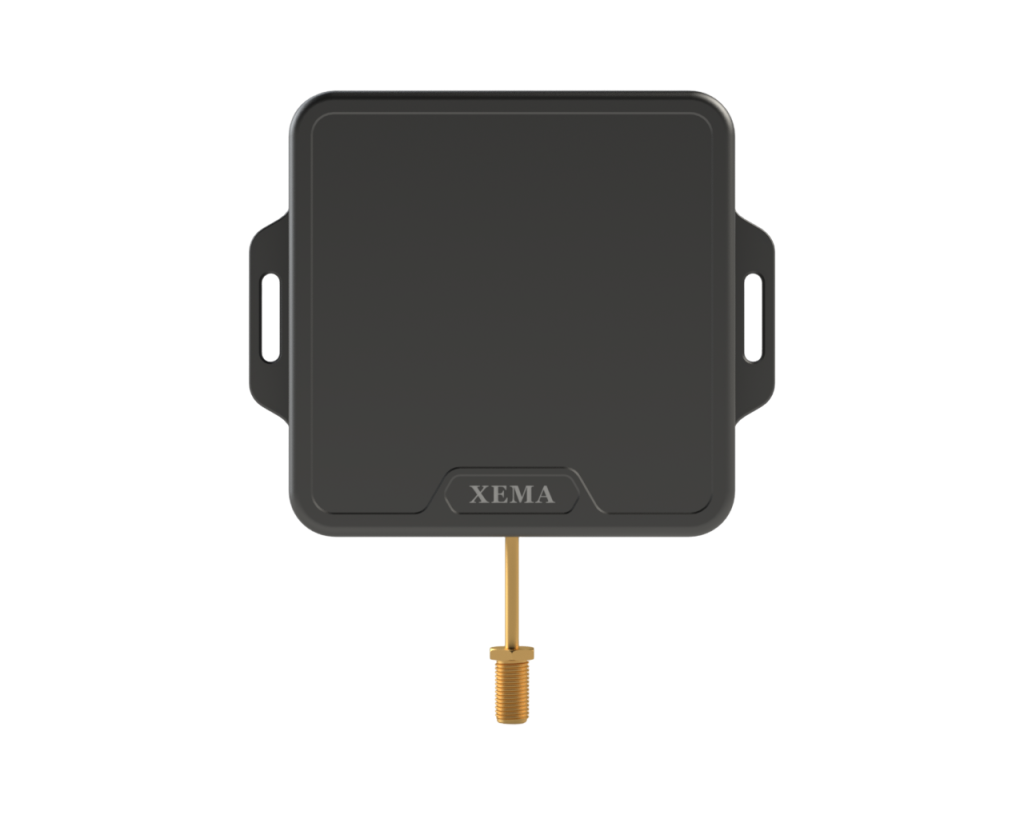

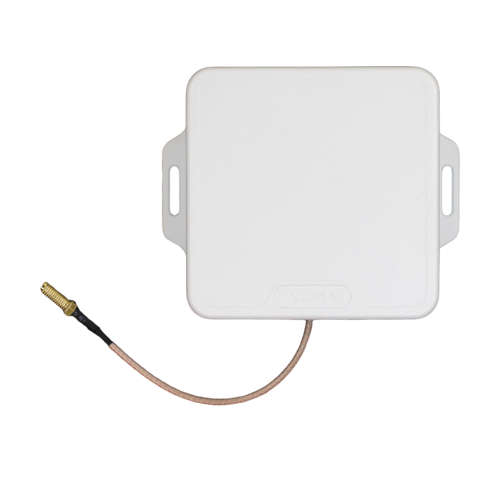

X89-A08A

UHF RAIN RFID Antenna

Return Loss: -16 dB Max
Gain: 2.6dBi
Polarizastion: RHCP

RFID SPECIFICATIONS

Frequency902~928MHz
Return Loss<-18 dBm
Gain2.6 dBi
Beamwidth (@3dB)110 Typical
Impedance50Ω
PolarizationRHCP
RF Cable & ConnectorRG316 & SMA(F)
MaterialFR4 (Antenna) & PC (Case)
Weight70 gr
IP RatingIP65

COUNTRY OF ORIGIN

Made in Taiwan
